COBB Subaru Aluminum Charge Pipe Kit - 2022+ Subaru WRX
Replace the factory plastic charge pipe on your FA24-powered WRX with the COBB Aluminum Charge Pipe Kit to unlock better airflow, improved reliability, and a cleaner under-hood look. Designed to work with the OEM top-mount intercooler, this upgraded charge pipe smooths the path from the turbocharger outlet to the intercooler while retaining full compatibility with the stock airbox and factory calibration.
Factory plastic piping can introduce turbulence and is prone to fatigue and cracking over time as it is constantly heat cycled. COBB solves this with CNC-radiused 6061 aluminum tubing, an integrated billet transition, and a robust turbo-side adapter that securely locks into the compressor housing.
Key Features
- CNC-Radiused 6061 Aluminum Tubing: Smooth, rigid charge path that resists heat-related degradation.
- Optimized Diameter Transition: 2.5" at the lower section transitioning to 2.75" at the intercooler connection via an integrated billet adapter for increased flow and proper clearance.
- Wrinkle Black Powder Coat: Durable, heat-resistant finish that delivers a subtle, OEM+ aesthetic.

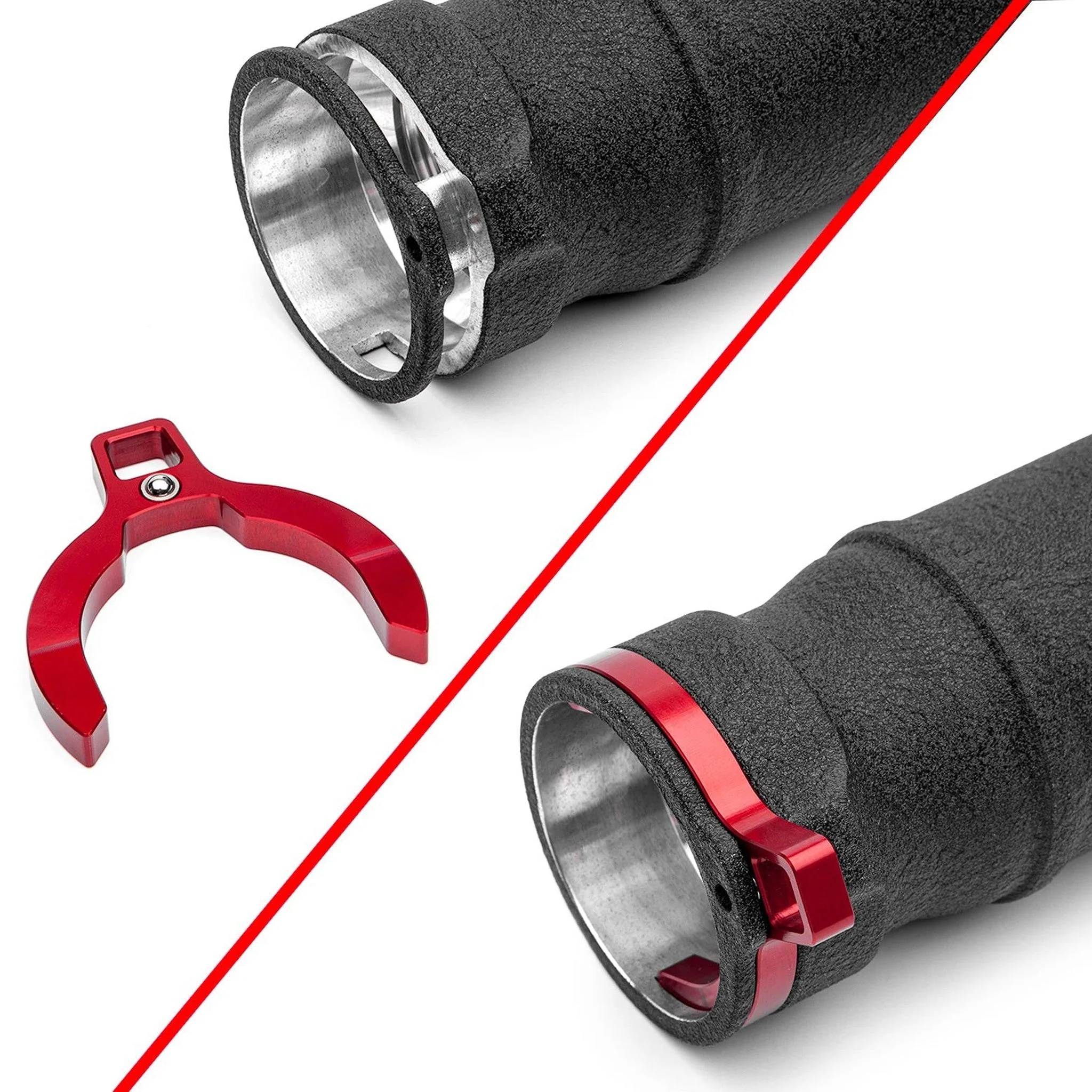

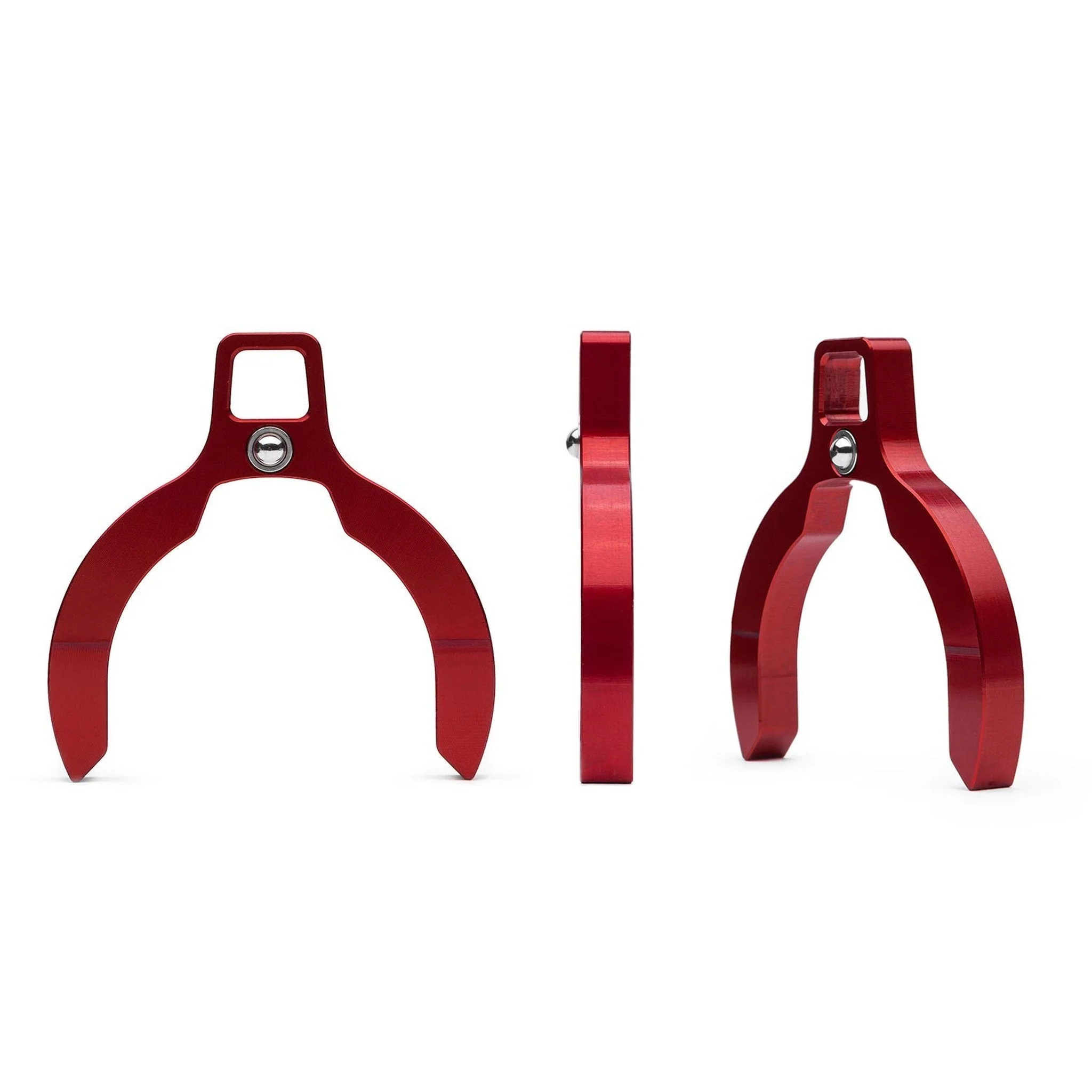

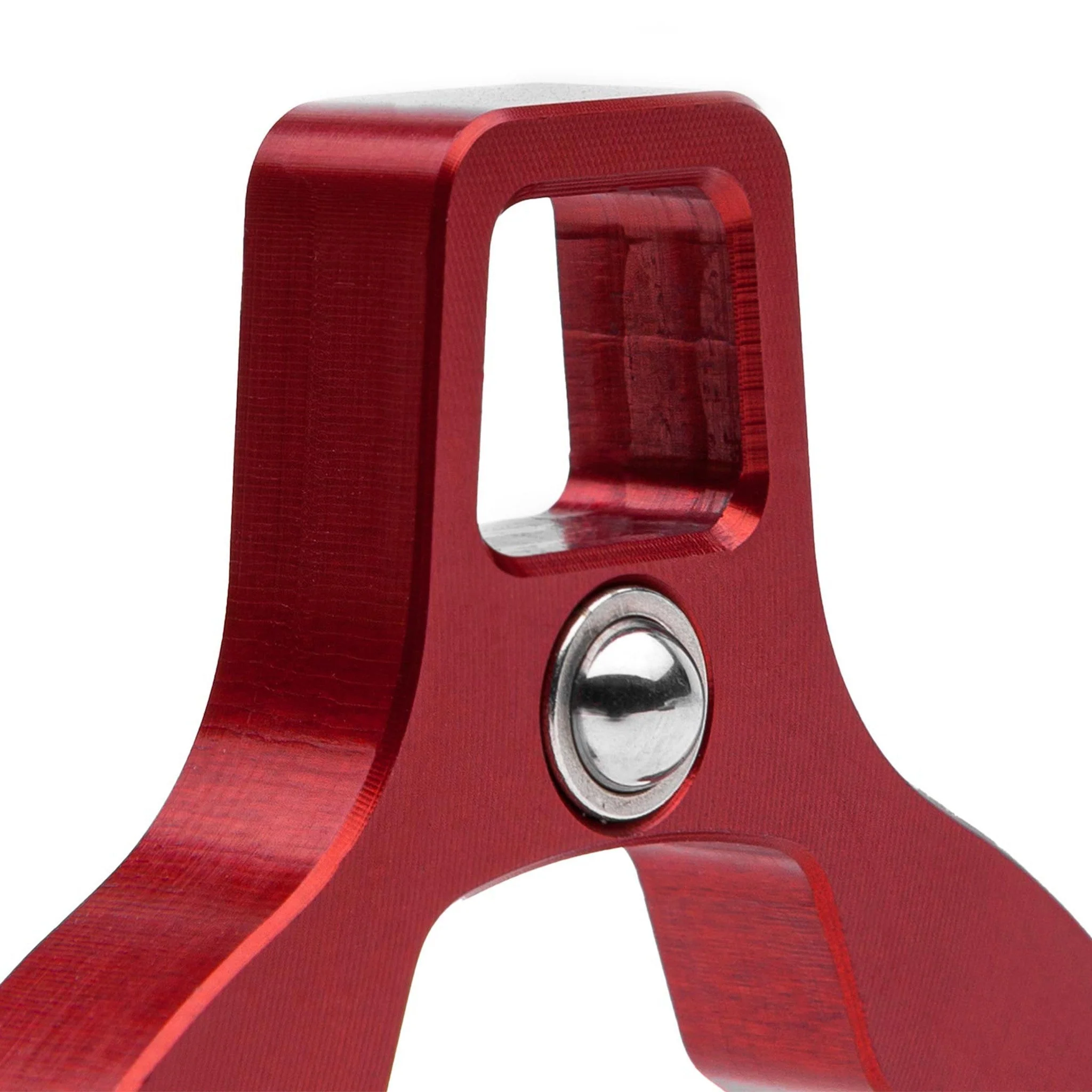

- Bespoke Machined Retaining Clip: Anodized clip with ball detent positively locks the pipe to the turbocharger housing.
- 5-Ply Silicone Coupler: High-quality coupler at the intercooler side for a straightforward, leak-free installation.
- Tune-Friendly: Fully compatible with the stock calibration and COBB Off-The-Shelf (OTS) maps.
Cobb Tuning FA24 DIT VB WRX Charge Pipe
Why We Like It
This is the “do it once, do it right” solution for the FA24 charge side. You eliminate failure-prone plastic, reduce airflow restriction, and keep the engine bay looking clean and factory-plus. Pair it with COBB’s Stage 2 Power Package and OTS calibration to really take advantage of the added flow potential.
Emissions Compliance
This part is 50-state legal when used according to COBB’s application guide. It carries the following CARB Executive Orders (EO):
- D-660-156
- D-660-189
- D-660-210
- D-660-218
Confirmed Fitment
- 2022+ Subaru WRX (FA24 turbo)
- Other FA24 turbo Subaru applications per COBB’s fitment guide
Specifications
- Material: 6061 aluminum charge pipe with billet transition section
- Diameter: 2.5" lower, 2.75" at intercooler connection
- Finish: Wrinkle black powder coat
- Coupler: Black 5-ply silicone at intercooler side
- Turbo Connection: Integrated billet turbo adapter with machined retaining clip and ball detent
- Calibration: Compatible with stock tune and COBB OTS maps
Installation Notes
- No tuning is required to safely install this charge pipe.
- Install with the engine cool and the vehicle on level ground.
- Remove the OEM plastic charge pipe and associated hardware.
- Clip the billet turbo adapter securely onto the turbocharger housing until it positively locks.
- Attach the upper end to the intercooler using the supplied 5-ply silicone coupler and clamps.
- Verify all clamps are tight and there are no boost leaks before spirited driving.

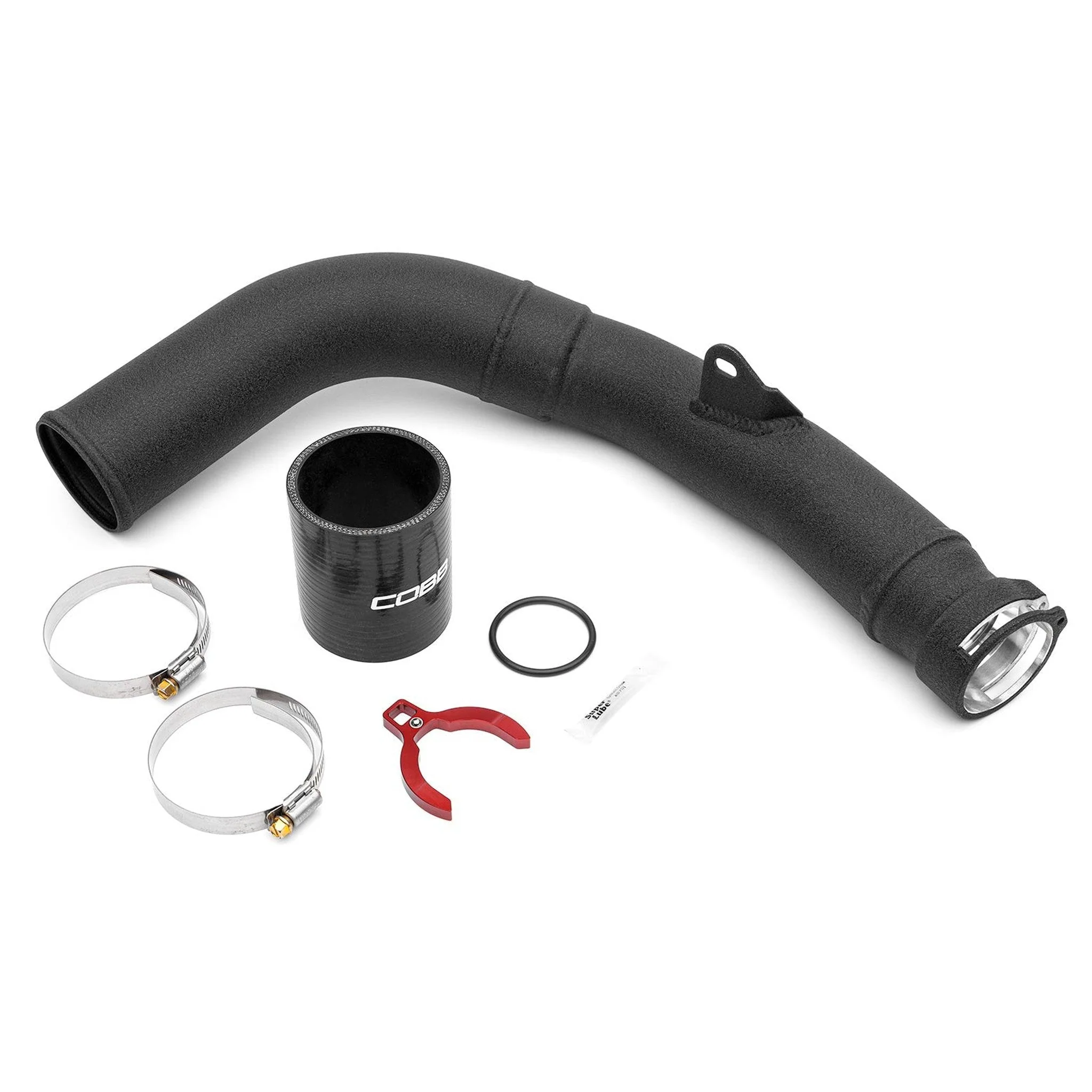

What’s in the Box
- (1) COBB 6061 aluminum charge pipe with integrated 2.5"–2.75" transition
- (1) Billet turbo adapter with machined retaining clip
- (1) 5-ply silicone coupler
- Required clamps and mounting hardware
- Installation guide (digital or printed, depending on kit)
Compatibility & Disclaimers
Designed for turbocharged FA24 Subaru applications including the 2022+ WRX. Always confirm fitment against COBB’s application guide. Periodically inspect clamps, couplers, and the turbo-side connection as part of your regular maintenance routine, especially on tuned or higher-boost vehicles.
